Tapping temperature directly affects steel quality in secondary metallurgy by determining how much thermal headroom remains for ladle treatments such as alloying, desulfurization, and degassing. If liquid steel arrives at the ladle furnace or treatment station too cold, the process window narrows sharply, forcing compromises that can degrade final steel cleanliness and composition. The sections below address the most important questions steelmakers face when managing tapping temperature across the secondary metallurgy route.
What happens to steel quality when tapping temperature is too low?
When tapping temperature is too low, the steel arrives at the secondary metallurgy station without enough thermal energy to complete the planned treatment sequence. This forces operators to either add energy through arc heating, reduce the scope of treatment, or accept a heat that falls short of specification. Each option carries a quality risk or a cost penalty that compounds downstream.
A ladle that is too cold at tapping tends to develop a thicker slag layer with reduced fluidity. Viscous slag is less effective at absorbing non-metallic inclusions from the steel bath, which means more inclusions remain suspended in the liquid steel as it moves toward casting. In clean steel production, where the target is to minimize oxide and sulfide inclusions, a low tapping temperature can undermine hours of careful upstream process control.
There is also a practical risk of premature steel freezing in the ladle nozzle or slide gate system. Partial or complete nozzle blockage can disrupt casting rhythm, force emergency interventions, and in some cases compromise the integrity of the ladle equipment itself. Consistent tapping temperature is therefore not only a quality variable but also an operational reliability factor.
How does tapping temperature affect inclusion formation and clean steel targets?
Tapping temperature influences inclusion formation in liquid steel primarily through its effect on slag chemistry, steel bath reactivity, and the efficiency of inclusion removal during ladle treatment. Higher tapping temperatures support more fluid, reactive slags that absorb alumina and other oxide inclusions more effectively. Lower temperatures reduce this absorption capacity and can cause inclusions to remain in the steel until solidification.
During tapping itself, the steel stream is exposed to the atmosphere and to furnace slag carryover. The extent of reoxidation during this exposure depends partly on temperature: hotter steel is more reactive, but if the tapping stream is properly shielded and the ladle slag is well conditioned, the net effect on cleanliness is manageable. Where temperature is low and slag conditioning is incomplete, the combination of reoxidation products and poor inclusion flotation creates a higher risk of elevated inclusion counts in the final product.
For steelmakers targeting clean steel grades, the tapping temperature must be set high enough to allow full slag conditioning, effective argon stirring for inclusion flotation, and, where required, vacuum degassing, all without falling below the minimum casting temperature. Ladle slide gate systems that support inert-gas shielding during casting also play a role in protecting steel cleanliness after treatment is complete.
What is the ideal tapping temperature range for secondary metallurgy?
There is no universal ideal tapping temperature for secondary metallurgy because the correct value depends on steel grade, ladle size, treatment route length, and the minimum temperature required at the casting platform. As a general principle, tapping temperature must be set high enough to cover all anticipated heat losses between the furnace and the first casting strand, while leaving a controlled margin for treatment operations.
In practice, steelmakers calculate a target tapping temperature by working backwards from the required casting temperature, adding expected heat losses in the ladle during transport, waiting time, and each treatment step. Arc reheating at the ladle furnace can compensate for some losses, but relying on excessive reheating increases energy consumption and can negatively affect electrode and refractory wear.
For most secondary metallurgy routes, tapping temperatures in the range of roughly 30 to 60 degrees Celsius above the liquidus temperature are common starting points, adjusted upward depending on treatment complexity and ladle thermal history. Newly lined or cold ladles require higher tapping temperatures to compensate for the heat absorbed by the refractory lining during the first heats of a campaign.
How does tapping temperature influence alloying and desulfurization efficiency?
Tapping temperature influences both alloying yield and desulfurization efficiency by controlling slag fluidity, steel bath temperature during treatment, and the kinetics of chemical reactions between the steel and slag. Adequate temperature keeps the slag in a fluid state that promotes mass transfer, which is the physical process through which sulfur moves from the steel into the slag and through which alloying elements dissolve and distribute evenly.
Alloying yield and temperature
When steel temperature is sufficient, alloying additions dissolve quickly and mix uniformly through argon stirring. At lower temperatures, some alloy additions may dissolve incompletely or unevenly, leading to compositional scatter across the heat. This is particularly relevant for elements that are added in precise quantities to meet tight grade specifications, where even small yield variations translate directly into off-grade heats.
Desulfurization kinetics and slag reactivity
Desulfurization requires a highly basic, fluid, and reducing slag in contact with steel at sufficient temperature. If the steel is too cold when desulfurization begins, slag viscosity increases, the reaction rate slows, and the final sulfur content may remain above the target. This is a well-recognized constraint in the production of low-sulfur grades such as pipeline steels, bearing steels, and certain automotive grades, where sulfur targets below 0.005 percent are common.
What causes tapping temperature to deviate from target?
Tapping temperature deviates from target due to a combination of furnace process variability, ladle thermal condition, measurement uncertainty, and operational timing. Understanding the root causes helps steelmakers distinguish between systematic deviations that require process adjustment and random variation that can be managed through compensation strategies.
- Ladle thermal condition: A cold ladle, whether newly lined, recently repaired, or returned from a long idle period, absorbs significantly more heat from the steel than a hot ladle in the middle of a campaign. Ladle preheating practices directly affect how much heat is lost at tapping.
- Furnace process variability: Variations in scrap composition, charge weight, oxygen blowing patterns, and heat duration in the electric arc furnace or basic oxygen furnace can cause the steel temperature at the end of the primary process to deviate from the planned value.
- Measurement timing and accuracy: Temperature measurements taken at the furnace before tapping do not fully account for heat losses during the tapping process itself. Delays between measurement and tapping, or inaccurate thermocouple readings, contribute to the gap between expected and actual ladle arrival temperature.
- Slag carryover and cover: Excessive furnace slag carried into the ladle during tapping insulates the steel surface but also reacts with the steel bath, consuming energy and potentially altering the thermal balance.
- Logistical delays: Waiting time between tapping and the start of ladle treatment, caused by crane availability, ladle transfer distances, or treatment station queuing, adds to heat loss and widens the gap between tapping temperature and treatment temperature.
How do steelmakers control and compensate for tapping temperature variation?
Steelmakers control tapping temperature variation through a combination of predictive process models, ladle thermal management, reheating capability at the ladle furnace, and tight operational discipline around measurement and timing. No single measure eliminates variation entirely, but a layered approach keeps deviations within a range that secondary metallurgy can handle without compromising steel quality.
Ladle preheating is one of the most direct levers available. Maintaining ladles at controlled temperatures between heats, using dedicated preheating stands, reduces the heat absorbed by the refractory at tapping and makes ladle thermal behavior more predictable across a campaign. Tracking ladle history, including number of heats, idle time, and repair status, allows operators to assign appropriate tapping temperature offsets for each ladle.
Arc reheating at the ladle furnace provides a correction mechanism when steel arrives below the target temperature. However, ladle furnace capacity is finite, and excessive reliance on reheating to compensate for low tapping temperatures adds cost, extends treatment time, and increases refractory wear. The ladle furnace is most effective when used for fine temperature adjustment rather than as a primary recovery tool for large temperature deficits.
Process models that integrate furnace endpoint temperature, expected tapping duration, ladle thermal history, and planned treatment steps can calculate a recommended tapping temperature for each heat. These models improve consistency by removing guesswork and by flagging heats where the planned temperature is unlikely to be sufficient before tapping begins, giving operators time to adjust rather than react.
Minimizing delays between tapping and treatment also reduces uncontrolled heat loss. Coordinating crane movements, treatment station availability, and casting schedule reduces idle time in the ladle and makes temperature management more predictable. Even small reductions in waiting time can meaningfully reduce the required tapping temperature offset.
How KNÖLLINGER FLO-TEC supports clean steel production at the ladle
Managing tapping temperature carefully is only part of protecting steel quality through the secondary metallurgy route. Once the steel is in the ladle and treatment is complete, the equipment controlling steel flow at casting must preserve that cleanliness all the way to the mold. This is where the right ladle slide gate system makes a practical difference.

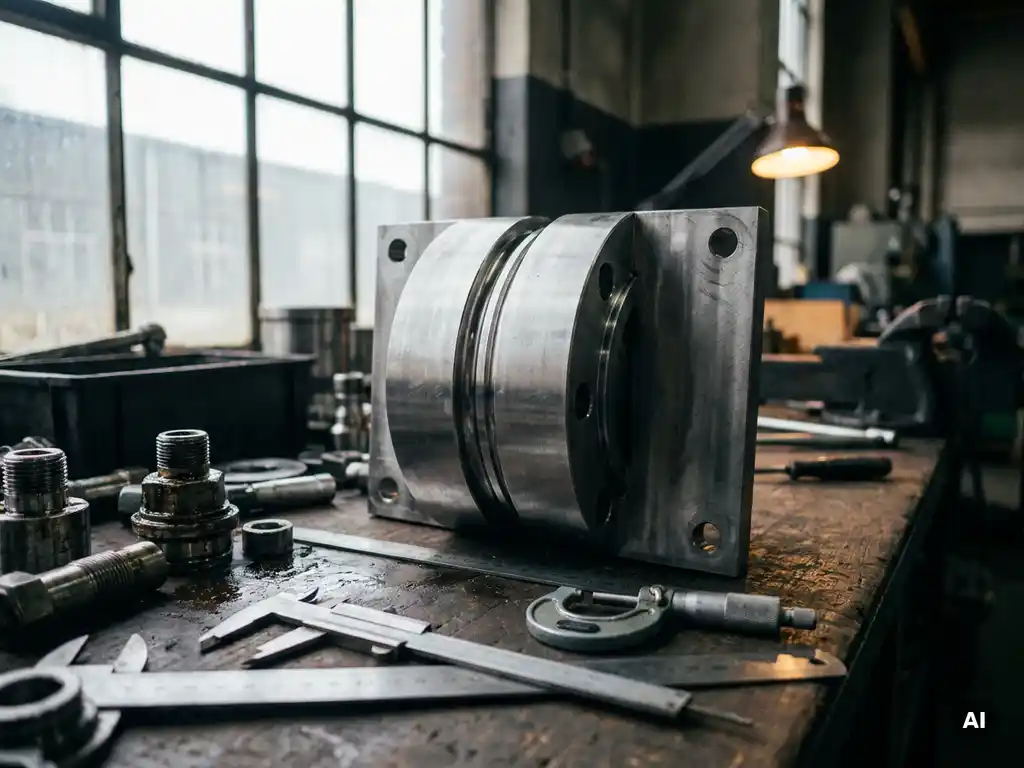

At KNÖLLINGER FLO-TEC, we design and manufacture ladle slide gate systems specifically for demanding steelmaking environments, including plants focused on clean steel production. Our systems are built to support the following operational priorities:
- Inert-gas shielding capability to help reduce reoxidation of treated steel during casting
- Reliable flow control across a range of ladle sizes and casting conditions
- Compatibility with different patent-free refractory plate formats, reducing dependence on a single supplier
- Robust construction designed for high thermal and mechanical loads in continuous and ingot casting applications
- Enclosed design that supports operational safety in the event of a steel leak
If you want to understand how our slide gate systems can support your secondary metallurgy and casting operations, we are happy to discuss your specific ladle configuration and process requirements. Contact our team to start the conversation.
