How does ladle slag carryover contaminate steel during tapping?

Ladle slag carryover contaminates steel during tapping when furnace slag flows from the steelmaking vessel into the ladle along with the liquid steel. This slag introduces oxidizing compounds, non-metallic particles, and chemical elements that degrade steel cleanliness, disrupt ladle metallurgy, and ultimately compromise the quality of the finished product. The sections below address each stage of this problem and what steelworks can do about it.

What happens to steel cleanliness when slag enters the ladle?

When slag enters the ladle, it directly threatens steel cleanliness by introducing a chemically active, oxidizing layer above the steel bath. Furnace slag typically carries high concentrations of iron oxide (FeO) and manganese oxide (MnO), which react with deoxidation elements such as aluminum and calcium already dissolved in the steel. These reactions generate fresh non-metallic inclusions that remain suspended in the melt.

The consequences extend beyond chemistry. Inclusions formed through slag-steel reactions are often irregularly shaped and difficult to float out in the available processing time. Even a thin layer of carried-over slag can reoxidize a carefully deoxidized heat, undoing the metallurgical work performed in the ladle furnace. For steel grades where cleanliness is a defined quality criterion, such as bearing steels, wire rod, and automotive sheet, this is a serious production risk that directly affects yield and customer acceptance.

Why does slag carryover occur during tapping?

Slag carryover during tapping occurs primarily because furnace slag and liquid steel are discharged through the same taphole at the end of the heat. As the steel level in the furnace drops, the slag layer above it is drawn toward the taphole by the vortex effect, and slag begins to flow into the ladle along with the remaining steel. The transition from steel flow to slag flow is rarely sharp.

Several factors increase the risk and volume of carryover. A large slag volume in the furnace, a low steel bath level at the end of tapping, a worn or incorrectly positioned taphole, and a slow tapping rate all allow more time and opportunity for slag to be entrained. Operator practice also plays a role: ending the tap too late rather than accepting a small steel yield loss is a common cause of excessive carryover. In electric arc furnaces, foamy slag practices that improve energy efficiency can paradoxically increase carryover risk if not managed carefully at the end of the heat.

What types of inclusions does slag carryover introduce into steel?

Slag carryover introduces primarily oxide-based non-metallic inclusions into steel. The most common types are alumina (Al₂O₃), silicates, and complex calcium aluminate or manganese silicate particles, formed when the oxidizing slag reacts with deoxidation elements in the steel. These inclusions vary in size, morphology, and distribution depending on the slag composition and the steel’s deoxidation practice.

Alumina inclusions are particularly problematic because they tend to cluster into larger agglomerates that are difficult to remove by flotation and can clog submerged entry nozzles during continuous casting. Silicate inclusions, while generally softer and more deformable, can still impair fatigue resistance and surface quality in demanding applications. In steels deoxidized with calcium treatment, slag-induced reoxidation can disrupt the carefully engineered inclusion morphology, converting spherical calcium aluminates back into harder, more harmful forms. The overall effect is a broader inclusion size distribution and a higher total inclusion count, both of which are measurable indicators of reduced steel cleanliness.

How does slag carryover affect downstream steel processing?

Slag carryover affects downstream processing at multiple points in the production chain. The most immediate impact is on ladle metallurgy: a high-FeO slag in the ladle absorbs deoxidizers and alloying elements, increasing alloy consumption and making it harder to achieve precise chemistry targets. Calcium treatment efficiency drops when the slag is oxidizing, which means the inclusion modification step becomes less reliable.

At the continuous caster, inclusions generated by slag reoxidation are a leading cause of nozzle clogging, particularly alumina buildup on the inner walls of submerged entry nozzles. Clogging forces flow rate adjustments, reduces casting speed, and in severe cases requires a casting interruption. In the final product, inclusions that are not removed before solidification become defect sites. They can cause surface defects in flat-rolled products, internal laminations in plate, wire breaks during drawing, and fatigue failures in high-stress applications such as bearings, springs, and automotive components. The downstream cost of slag carryover therefore extends well beyond the steelmaking furnace.

How is slag carryover detected and measured?

Slag carryover is detected and measured using several complementary methods, each with different sensitivity and practical requirements. The most widely used industrial technique is the electromagnetic slag detection system, which identifies the change in electromagnetic properties as slag replaces steel at the taphole. These systems can trigger an automatic or manual signal to close the taphole or slide gate when slag flow begins.

Visual and chemical indicators

Visual observation remains a practical first check. Operators watch for the characteristic color change and foaming behavior at the ladle surface as slag begins to enter. However, visual methods are unreliable for small carryover volumes and depend heavily on operator experience and visibility conditions.

Chemical analysis of the ladle slag after tapping provides a quantitative measure. A high FeO content in the ladle slag, typically above a threshold set by the plant’s metallurgical practice, indicates significant carryover. The basicity ratio and total iron oxide content are standard parameters tracked in quality-conscious steelworks.

Inclusion analysis in the final product

Inclusion analysis techniques such as automated scanning electron microscopy with energy-dispersive X-ray spectroscopy (SEM-EDS) and optical emission spectrometry with pulse discrimination allow metallurgists to characterize inclusion populations in steel samples. Elevated inclusion counts or shifts in inclusion chemistry consistent with slag-derived particles can be traced back to tapping practice. These methods are more commonly used in quality investigations and process audits than in real-time control.

What are the most effective ways to minimize slag carryover during tapping?

The most effective ways to minimize ladle slag carryover combine early taphole closure, reliable detection technology, and well-maintained flow control equipment. No single measure eliminates carryover entirely, but a combination of process discipline and appropriate hardware reduces it to levels that ladle metallurgy can manage without significant quality impact.

Key measures include:

• Early tap termination: Closing the taphole before the vortex draws slag into the ladle, accepting a small steel yield loss in exchange for a cleaner heat, is one of the most reliable controls available.
• Electromagnetic slag detection: Automated detection systems provide a consistent and operator-independent signal for when to close the taphole, reducing variability compared to visual methods alone.
• Taphole maintenance: A properly shaped and sized taphole produces a stable, high-velocity steel stream that is less susceptible to early slag entrainment. Worn or enlarged tapholes increase carryover risk.
• Slag thickeners and retaining plugs: Physical devices placed at the taphole can help retain slag in the furnace during the final phase of tapping.

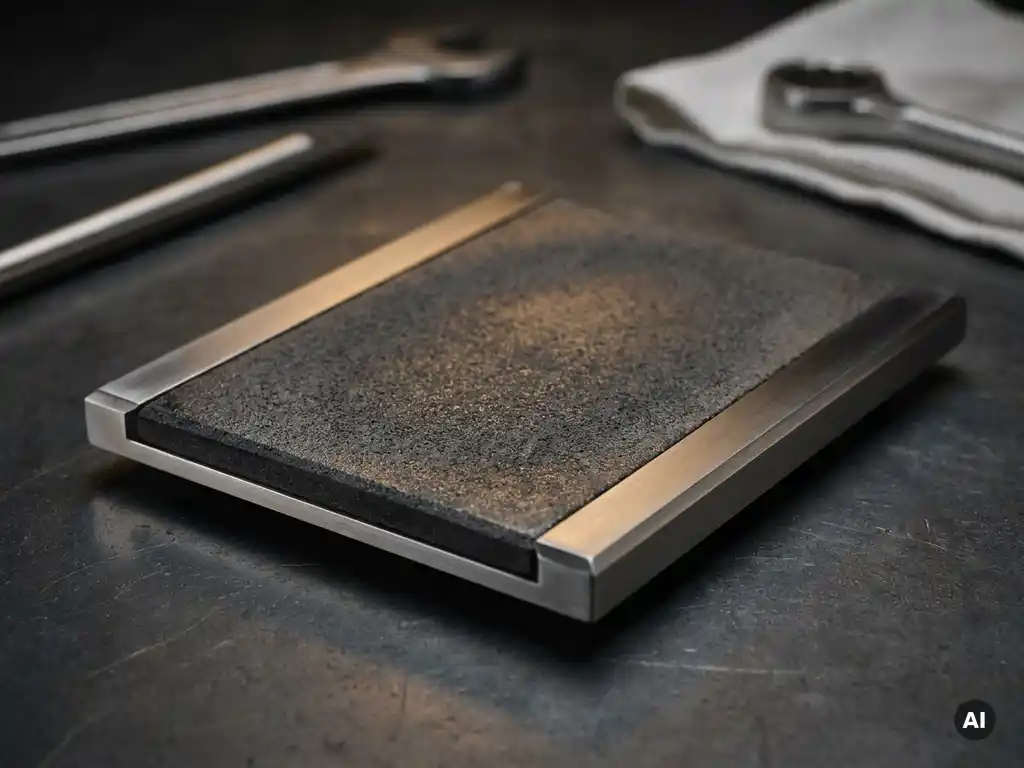

• Ladle slide gate control: A reliable, well-maintained ladle slide gate system allows precise flow control at the ladle outlet. This is particularly relevant during casting, where controlled steel flow supports consistent strand conditions and reduces turbulence that can re-entrain slag particles already present in the ladle.
• Ladle slag conditioning: After tapping, treating the ladle slag with lime or other conditioners reduces its FeO content and limits ongoing reoxidation of the steel bath during transport and ladle furnace treatment.

Steelworks that treat slag carryover as a process variable to be actively managed, rather than an unavoidable byproduct of tapping, consistently achieve lower inclusion counts, more stable ladle metallurgy, and fewer casting-related quality events.

How KNÖLLINGER FLO-TEC supports clean steel production

Controlling what happens at the ladle outlet is one part of a broader clean steel strategy. We at KNÖLLINGER FLO-TEC develop and manufacture ladle slide gate systems specifically for steelworks that take steel cleanliness seriously. Our systems are designed to support the demands of clean steel production, including applications where inert-gas shielding is used to reduce reoxidation between the ladle and the caster.

What we offer steelworks focused on reducing contamination and improving process reliability:

• Two-plate and three-plate ladle slide gate systems, including the GT series designed for clean steel applications with inert-gas flooding capability
• Systems compatible with a wide range of patent-free refractory plate formats, reducing dependence on a single refractory supplier
• Customized solutions for different ladle sizes and operating requirements, developed according to the principle of keeping the design straightforward and maintainable
• High operational safety through robust construction and reliable containment in the event of a leak
• The possibility of retaining existing actuation systems where technically suitable, reducing conversion costs

If you want to discuss how our slide gate systems fit your ladle configuration and quality targets, get in touch with our team directly. You can also download technical documentation to review our product range in detail.
