Steelmakers control aluminum loss during secondary metallurgy primarily by minimizing reoxidation at every stage of ladle treatment and casting. The key is limiting contact between aluminum-killed steel and oxygen sources, including air, oxidizing slag, and refractory components. This article unpacks the main causes of aluminum loss and the practical measures that help steelworks improve aluminum yield.
Why does aluminum disappear so quickly in the ladle?
Aluminum disappears quickly in the ladle because it is an extremely reactive deoxidizer. When added to liquid steel, aluminum reacts with dissolved oxygen to form alumina inclusions, which is the intended deoxidation reaction. However, aluminum continues to react with any oxygen it encounters afterward, including oxygen from the atmosphere, slag, and refractory materials, reducing the effective aluminum yield in the final product.
The speed of this loss reflects aluminum’s thermodynamic affinity for oxygen. Even trace amounts of oxygen entering the ladle after deoxidation can consume a disproportionate quantity of dissolved aluminum. In ladle metallurgy, where precise chemistry control is essential for producing high-quality steel grades, this reactivity makes aluminum one of the most difficult alloying elements to retain at target levels. Every process step between aluminum addition and final casting represents a potential loss point.
What are the main sources of aluminum reoxidation during ladle treatment?
The main sources of aluminum reoxidation during ladle treatment are atmospheric air ingress, oxidizing ladle slag, and reactive refractory materials. Each of these oxygen sources can react with dissolved aluminum and reduce the yield achieved after the initial deoxidation addition. Identifying and controlling these sources is fundamental to any aluminum loss strategy in secondary metallurgy.
Atmospheric air ingress
Air enters the ladle system at multiple points: through gaps in the ladle shroud connection, around the slide gate opening, and wherever the steel stream is exposed during transfer. Even brief exposure of the steel surface or stream to air generates significant reoxidation. Argon shrouding and sealed transfer systems are the primary technical responses to this source of oxygen pickup.
Slag and refractory contributions
Ladle slag that contains high levels of iron oxide or manganese oxide acts as an internal oxygen source, continuously reacting with dissolved aluminum throughout the treatment period. Similarly, certain refractory materials in the ladle lining can contribute oxygen under high-temperature conditions, particularly if the lining is not properly conditioned or if low-grade refractories are used. Managing slag chemistry and maintaining high-quality refractories are therefore directly linked to aluminum yield in steelmaking.
How does slag chemistry affect aluminum retention in liquid steel?
Slag chemistry affects aluminum retention directly through the oxidation potential of the slag layer. A slag with high iron oxide or manganese oxide content will continuously oxidize dissolved aluminum at the steel-slag interface, transferring aluminum from the steel into the slag as alumina. Steelworks targeting high aluminum yield must therefore manage slag composition actively during ladle treatment.
The standard approach is to reduce the iron oxide content of the ladle slag, often by adding lime and aluminum-bearing fluxes to condition the slag toward a more reducing chemistry. A well-conditioned ladle slag with low iron oxide activity not only protects dissolved aluminum but also helps absorb alumina inclusions generated during deoxidation, improving overall clean-steel aluminum performance. The thickness of the slag layer also matters: a deeper, well-covering slag reduces the risk of atmospheric reoxidation at the steel surface.
How does argon shrouding protect aluminum during casting?

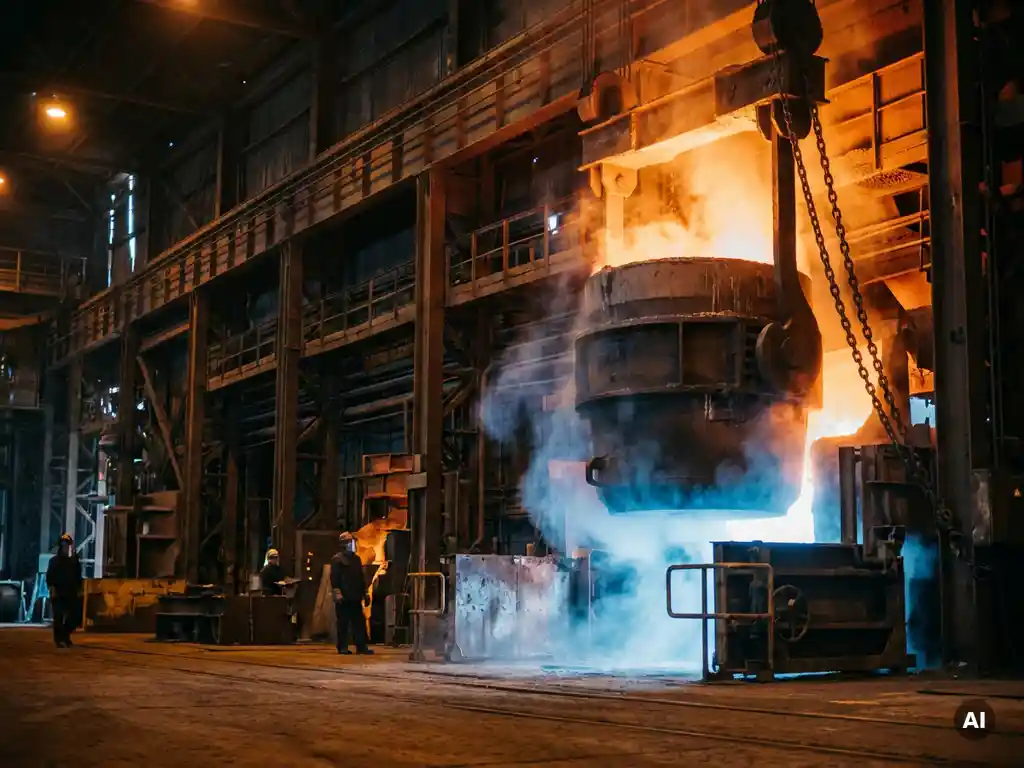

Argon shrouding protects aluminum during casting by displacing oxygen from around the steel stream as it flows from the ladle into the tundish or mold. Because argon is an inert gas, it creates a protective atmosphere that prevents atmospheric oxygen from contacting the exposed steel, which would otherwise cause rapid reoxidation and aluminum loss at this critical transfer point.
During continuous casting, the ladle-to-tundish transfer is one of the highest-risk moments for reoxidation. Without adequate shielding, the falling steel stream entrains air, introducing oxygen that reacts immediately with dissolved aluminum. Inert-gas shielding at this point can significantly reduce reoxidation-related aluminum loss and the associated formation of alumina inclusions, which can block submerged entry nozzles and affect casting stability.
For steel plants producing high-specification grades under a clean steel production philosophy, slide gate systems designed to support inert-gas flooding of the gate area provide an additional layer of protection. By reducing the oxygen exposure around the gate mechanism itself, these systems help maintain the low-oxygen environment that aluminum-killed steels require.
What role does the slide gate system play in aluminum yield?
The slide gate system plays a direct role in aluminum yield by controlling the steel flow from the ladle and, depending on its design, influencing how much oxygen contacts the steel during transfer. A poorly sealed or inadequately designed slide gate allows air to be drawn into the steel stream, introducing oxygen that reacts with dissolved aluminum and reduces yield. The gate system is therefore not just a flow-control device but a meaningful factor in overall aluminum oxidation prevention in steel.

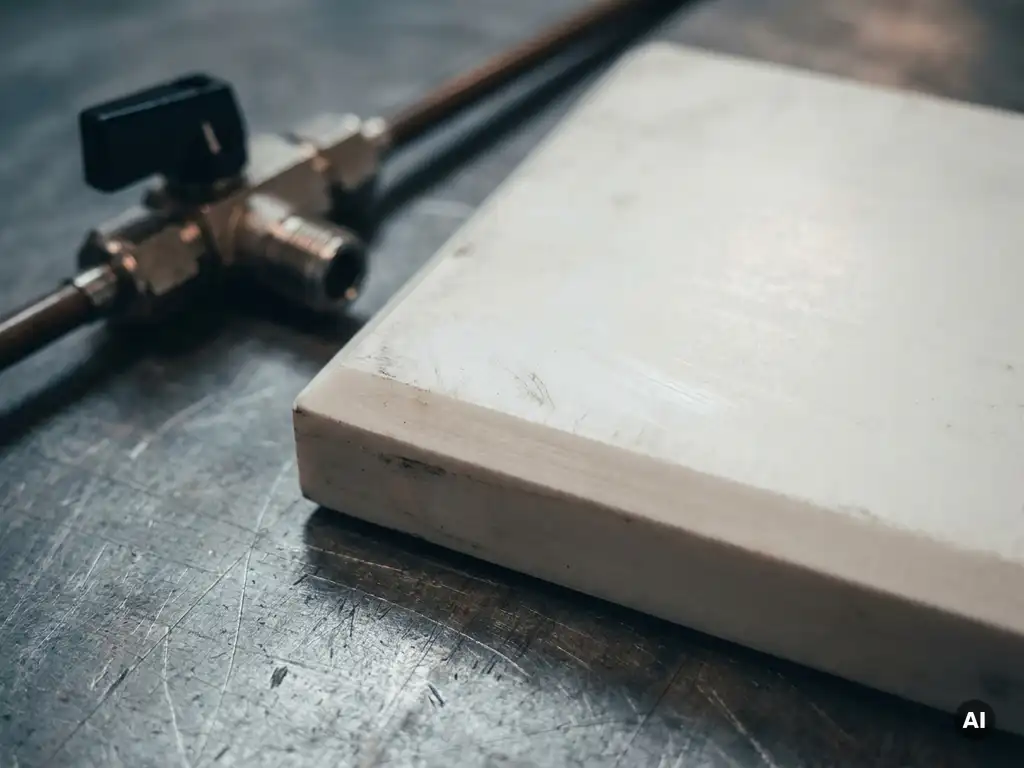

Well-designed ladle slide gate systems address this in several ways. An enclosed gate design can help contain any steel leaks and limit the exposure of the steel stream to the surrounding atmosphere. Systems that support inert-gas flooding of the gate area reduce the oxygen concentration in the immediate vicinity of the steel flow, lowering the reoxidation risk at this point. The quality and fit of the refractory plates within the gate also matter: poor plate contact or worn seating surfaces allow air infiltration that directly affects steel cleanliness.
Flexibility in refractory plate compatibility is another practical consideration. A ladle slide gate system that accommodates different patent-free plate formats allows steelworks to source refractories from multiple suppliers, reducing the risk of supply disruptions that might force the use of lower-quality plates and compromise aluminum yield.
How do steelmakers measure and track aluminum loss in practice?
Steelmakers measure and track aluminum loss in practice by taking steel samples at defined points throughout the ladle treatment and casting process and analyzing them for dissolved aluminum content. By comparing aluminum levels at each stage, metallurgists can calculate the loss occurring at each process step and identify where the greatest reoxidation is taking place.
Typical sampling points include immediately after the initial aluminum addition at the EAF or converter tap, after ladle furnace treatment, before casting begins, and from the tundish during continuous casting. The difference between these readings reveals where aluminum is being consumed. A large drop between the ladle and the tundish, for example, points to reoxidation during the ladle-to-tundish transfer, which may indicate problems with shrouding or slide gate sealing.
Oxygen activity measurements using immersion sensors provide complementary data, giving a real-time indication of the oxidation state of the steel. Inclusion analysis from solidified samples can also help identify whether alumina inclusions are forming at specific process stages, providing indirect evidence of where reoxidation events are occurring. Together, these measurement tools give metallurgists the process visibility they need to make targeted improvements to aluminum yield in steelmaking.
How KNÖLLINGER FLO-TEC supports aluminum yield in ladle metallurgy
We develop and supply ladle slide gate systems specifically designed for steelworks where aluminum control and clean steel production are operational priorities. Our systems are built to address the reoxidation risks that matter most at the ladle stage:
- Inert-gas compatible design: Our GT-series slide gates support inert-gas flooding of the gate area, helping reduce oxygen exposure around the steel flow during casting.
- Enclosed construction: The gate design supports operational safety by helping contain steel leaks, reducing uncontrolled contact between steel and atmosphere.
- Compatibility with patent-free refractory plates: Our systems can be adapted to work with different plate formats, giving your plant flexibility in refractory sourcing and reducing supply-chain risk.
- Customized solutions: We develop gate systems to match your specific ladle sizes and operating requirements, including configurations for both continuous casting and ingot casting.
If your plant is working to improve aluminum yield or reduce reoxidation-related quality issues, we are glad to discuss your specific situation. Contact our team to start the conversation.
